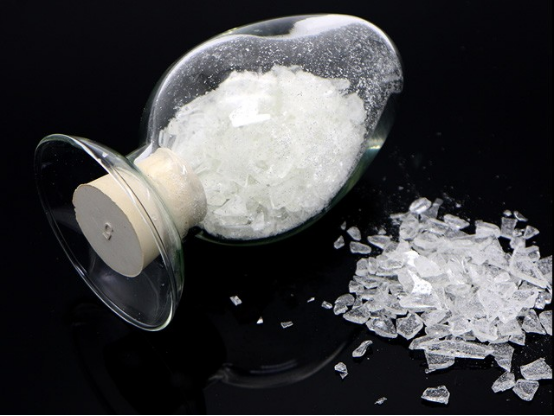

Purda 8011 Powder Coating Polyester Resin

No price
Collect
  • 商品说明

DESCRIPTON

Powder coating polyester resin is the general name of polymer compounds formed by condensation of diol or dibasic acid or polyol and polyacid. Powder coating polyester resin is divided into saturated polyester resin and unsaturated polyester resin. Unsaturated polyester adhesive is mainly composed of unsaturated polyester resin, pigments, fillers, initiators and other additives. The adhesive has the advantages of low viscosity, easy wetting, good processability, high hardness, good transparency, high brightness, rapid curing under pressure at room temperature, good heat resistance and excellent electrical properties. The disadvantages are large shrinkage, low adhesive toughness, poor chemical medium resistance and water resistance. It is used for non-structural adhesives. It is mainly used for gluing FRP, hard plastic, concrete, electric tank seal, etc.


FEATURES

Powder coating polyester resin has good process performance. After being diluted by styrene, it has the appropriate viscosity formed at room temperature. It can be cured at room temperature and has light color. Different measures can be taken to improve its performance.

The comprehensive performance after curing is good. Although the mechanical properties are not as good as epoxy, they are better than phenolic, good electrical properties, corrosion resistance and aging resistance. There are special brands to meet the needs of different uses. Generally speaking, the performance is satisfactory

The price is low, much lower than epoxy and slightly more expensive than phenolic.

Large curing shrinkage and poor heat resistance; It has strong odor and certain toxicity during molding.



SPECIFICATIONS

Product description

The ratio with TGIC is 93 / 7

Product characteristics

Economical resin, good flexibility and excellent leveling





Technical indicators

Appearance

Pale white

Color (50%DMF, Pt-Co)

150

Acid Value (mgKOH/g)

29-36

Viscosity (mPa.s/200)

2000-4000

Softening point ()

100-120

Glass transition temperature ()

64

Packaging and storage

25kg, packed in polyethylene bags; Below 30 , shelf life 1 year; Dry and ventilated, avoid direct sunlight



Manufacturing method

Extruder

SLJ-30A

Temperature of barrel ()

50

Screw temperature ()

110-120

Speed (HZ)

45

Curing conditions

Curing (/min)

200/10







Coating film properties

Film thickness (μm)

60-80

Gloss (60°/ %)

92

Adhesion test (Cross cut method, 2mm grade)

0

Storage test (40)

Excellent

Erichsen cupping test (mm)

92

Impact strength test

50/50

Pencil hardness test

1H



SAMPLES
